The TeeChart Pro ActiveX charting component library offers hundreds of graph styles in 2D and 3D, 57 mathematical and statistical functions for you to choose from together with an unlimited number of axes and 14 toolbox components. The charting control can be efficiently used to create multi task dashboards.

Supported IDE’s

32-bit / 64-bit ActiveX components

-for Visual Studio .Net, Visual Basic, Visual C++, Delphi, Visual Studio 6, IIS / ASP

-Powerbuilder, MS Office Suite and many other Windows COM aware programming environments

-Fully scriptable under Internet Explorer using VBScript or JavaScript

-Supports VBA and ASP (Active Server Pages)

Server and Client components

Use the full power of the TeeChart ActiveX Control on the server: Database enabled and with all export formats for use in your ASP, ISAPI, CGI or MTS application. Direct stream output as a browser independent format or the lightweight AX client control for AX aware Browsers, with a fully navigable, event driven Chart to work interactively with server sourced data.

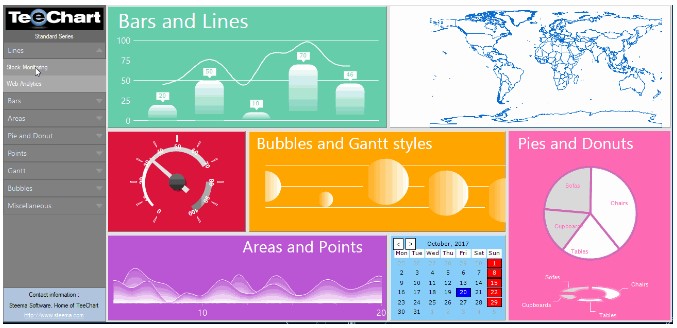

Chart types

70+ chart types and variations including:

- Standard: Line, Bar, Area, Pie, Fast Line, Point (Scatter), Bubble, Gantt, Shape, Horiz. Line, Horiz. Bar, Horiz.Area, Double Horiz. Bar

- Financial: Candle OHLC, Point and Figure, Volume, Kagi, Renko, Darvas Boxes, EquiVolume

- Statistical: Histogram, Horiz. Histogram, Error Bar, Error, High-Low, BoxPlot, Horiz. BoxPlot, Violin, Horiz. Violin, Beeswarm, Horiz Beeswarm, Funnel (Pipeline), VolumePipe, High-Low Line, Ternary, Error Point, Error Point 3D

- Extended: Polar, Radar, Polar Bar, Organizational Chart, Treemap, Arrow, Bezier, Donut, Smith, Pyramid, Map GIS

- 3D: Surface, Contour, Waterfall, ColorGrid, Vector 3D, Tower 3D, Iso-Surface, Polar Grid, Point 3D, Bubble 3D, Triangle Surface, Polar Contour

- Other: Bubble Cloud, Image Bar, Bar 3D, Rose, Wind Rose, Line Point, Bar Join, Calendar, Image Point, Delta Point, Tag Cloud, Big Candle

Gauges

Gauges series type and indicators (Circular, Linear, Numeric, Knob, Equalizer and Combination) to display industrial instrumentation controls with lots of properties for fully customization.

Exporting Formats

You can easily export charts as images (JPEG, GIF, PNG, BMP, PCX, SVG, PDF, EPS, VML, WMF/EMF and Flex/Flash formats) and as data to HTML, XML, Text, CSV and Excel formats.

Fast and Memory Efficient

Chart Series internally use standard VCL Dynamic Arrays. This gives faster speed and less memory consumption. TeeChart graphical code speaks directly to Windows GDI API. Data is stored in dynamic arrays that are very closely mapped to memory which makes access and modifying the arrays almost as fast as the computer processor. The code is streamlined as much as possible to increase internal speed, especially when re-drawing.
